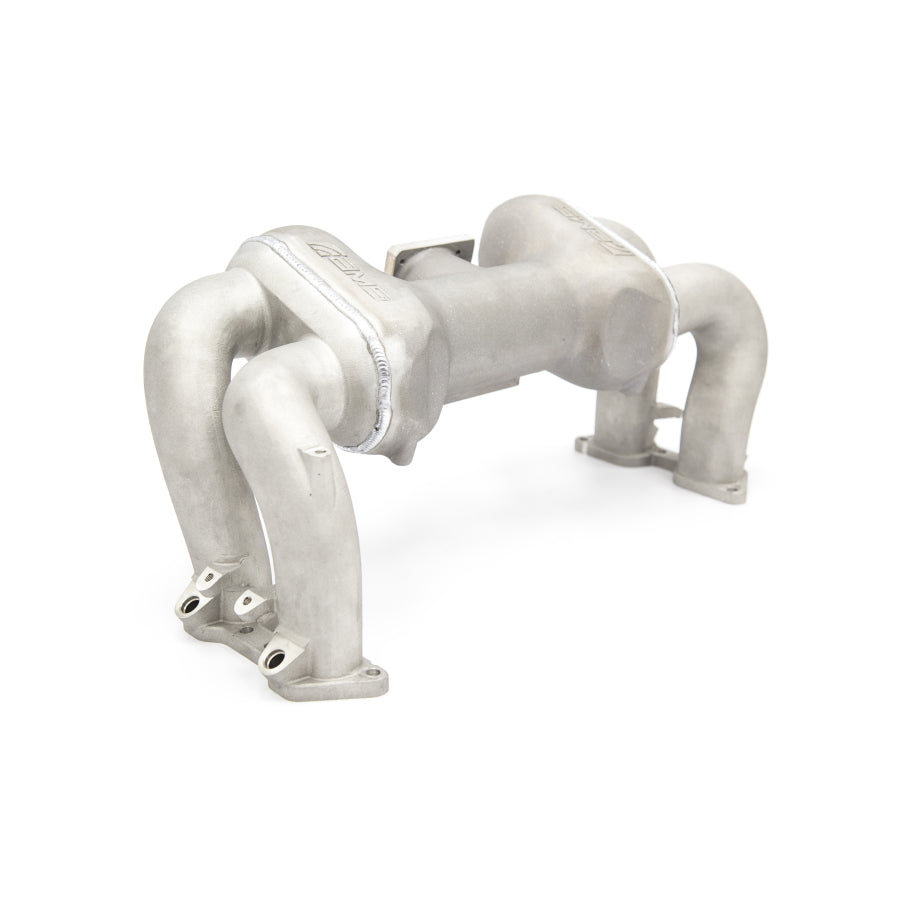

AMS EJ25 Intake Manifold Uncoated - 2002-2014 WRX / 2004-2021 STI

SKU: AMS.31.08.0001-1

$1,260.95 $1,299.95

Fitment Information:

2002-2014 Subaru WRX

2004-2021 Subaru STI

Please note:

Will fit 02-05 WRX with EJ20 only with adapter to use WRX style drive by cable throttle body
08-14 WRX with EJ25 requires using STI-style drive by wire throttle body
08-21 STI may require mild clearancing of A/C compressor line

. . . Show More >

Fitment Information:

2002-2014 Subaru WRX

2004-2021 Subaru STI

Please note:

Will fit 02-05 WRX with EJ20 only with adapter to use WRX style drive by cable throttle body
08-14 WRX with EJ25 requires using STI-style drive by wire throttle body
08-21 STI may require mild clearancing of A/C compressor line

Features:

Stay Ahead Of Your Competition with the AMS Performance Subaru EJ25 Intake Manifold!

The AMS Performance Subaru Intake Manifold was designed with performance and big HP custom setups in mind to outperform the competition. We referenced many modern design examples and engineering studies to bring you the best intake manifold available for the Subaru EJ20 and EJ25 WRX & STI. After extensive testing we ended up with a manifold that makes more power than anything else currently available on the market. With the level of builds this manifold will be used in, there will be some customizing required. Get yours today!

Uncoated
Standard Rotation Configuration
4.5 Liter Plenum Volume
13" Equal Length Intake Runners (Measured from Face of Bellhorn to End of Runner)
2.5" (63.5mm) Intake Runner Diameter (ID of Bellhorn)
Bellhorn OD 3.8" (96.7mm)
Increased Port Size at Cylinder Heads Allow Matching to Larger Hand Ported or CNC
Throttle Body Opening Accepts Larger Throttle Bodies up to 2.625” (66.675mm) or 70mm with mild porting.

Engineered To Be The Best

For the Subaru EJ Intake Manifold the plan was simple at AMS, take years of engineering experience and design the best intake manifold available. Designed, prototyped, and tested in house by their team of Engineers, the AMS Subaru EJ Intake Manifold was created to be the best unit available on the market. By casting this manifold it is not only stronger, but it allowed for optimizing the power output by giving the freedom to sculpt the interior geometry for maximum efficiency and airflow.

By utilizing Solidworks© & CFD (computational fluid dynamics) software we started with an extremely large plenum size of 4.5L for the ultimate top-end power. We also designed CNC machined bellhorns which act as internal velocity stacks and allow for a broad power curve and high RPM horsepower capabilities. This allowed us to optimize massive 2.5″ tapered runners and matched cylinder port angles to minimize turbulence and maximize power output. The 13″ length of the runners allow for a smooth taper in cross section reduction, giving the AMS Subaru EJ Intake Manifold exceptional flow.

Unmatched Power Gains and Excellent Response

This AMS Subaru EJ Intake Manifold offers more than just top end power. This manifold gives you an amazingly wide power-band with a huge jump in power whenever you are in boost. This equates to greatly improved lap times on the road course and the confidence to leave any opponent in your dust when on the street or drag strip!

Product Notes

Due to the large variety of rotated turbo kits on the market, we cannot guarantee fitment with every brand. Depending on the turbo location and sizing, interference with the cylinder 3 intake runner is possible.
Some port matching may be required when used in conjunction with CNC or hand ported cylinder heads.
Larger throttle bodies can be used with proper modifications (up to 70mm with minor porting). Larger throttle bodies may also require adapter flanges.
The intake manifold is flanged for 04-21 STI drive by wire throttle bodies, but cable throttle bodies can be used with custom fitting and flange adapter.
Standard configuration intercooler piping will need mild custom fabrication due to placement of throttle body.
The intake manifold is designed to use a common Subaru aftermarket top feed injector size. (48mm overall length / 11mm inlet – standard Subaru rail size / 14mm outlet). We recommend the use of Injector Dynamics brand injectors.
Standard Subaru style injectors cannot be used. (Side Feeds, Stock STI Style Injectors)
Not compatible with side feed to top feed conversion rails
Requires aftermarket rails and lines, will not fit with stock
Not compatible with top mount intercoolers.
Not directly compatible with mounting the factory upper coolant reservoir. Custom bracketry will need to be fabricated to mount.
The bottom of the center plenum features four 1/8″ and one 1/4″ NPT ports for vacuum accessories.
2008-2021 STI may require mild clearancing of A/C compressor line
