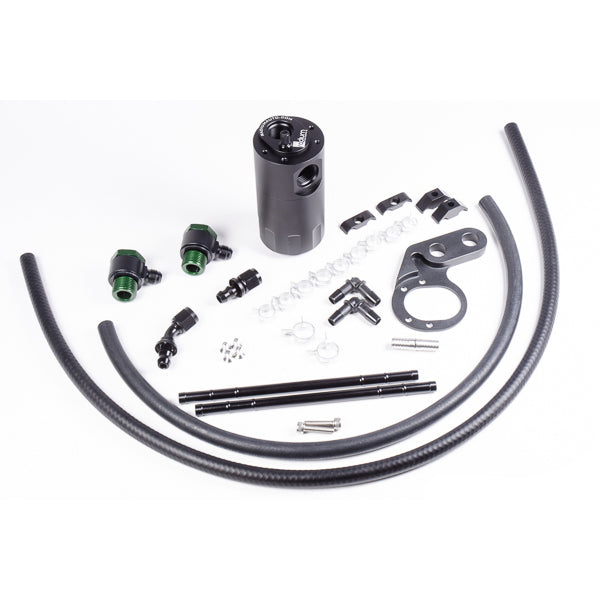

Radium CCV Side Catch Can Kit - 17+ Civic Type R

The Radium Engineering CCV Catch Can Kit for the new 2017+ Civic Type R secures to the Right Hand Engine Mount and fits without any cutting or permanent modification required.

This system runs inline with the crankcase vent port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this line will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.

This system does NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the CCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin.

The built-in dipsticks into the catch can allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.

Features

• Designed to safeguard your motor from engine oil in the CCV system
• Connects to OE lines
• CNC Billet Aluminum for nice appearance
• Mounts at firewall via existing holes
• Dual system recommended for ultimate protection
• Can be used in conjunction with the Mishimoto or Radium PCV Catch Cans
